Overview

Hart and Cooley model TLC All Fuel Chimney offers current technology in a factory built chimney design by providing superior performance, durability and safety. Model TLC is extremely corrosion resistant. Both the inner liner and outer casings are constructed of type 304 stainless steel. Embossed couplers do not allow moisture to penetrate the chimney's outer wall. Sections simply twist lock together and are secured with Locking Bands. The Model TLC product line features deluxe chimney support components that will enhance any installation. Black trims are used to embellish the chimney support component parts that may be installed inside the home. All Model TLC supports are designed to carry four times the UL listed weight of the listed height. Model TLC is safety tested and listed to applicable UL safety standards for chimneys serving solid fuel and liquid fuel appliances. This includes UL 103. This chimney system is designed for use on appliances that use solid, liquid or gas fuels under natural draft conditions.

Features

• Stainless steel construction

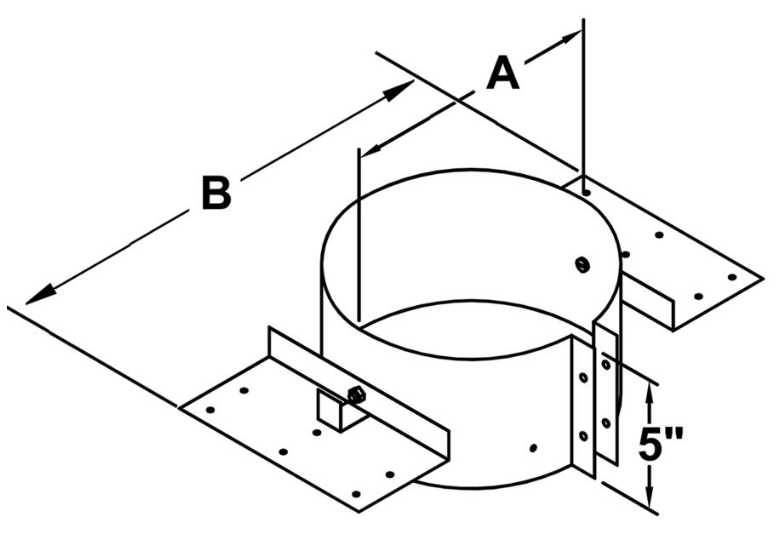

• Dimension "A" is 9" - Dimension "B" is 18"
• Adjusts to any roof pitch
• May be used above an offset to support the offset, or as supplementary support when the vent height exceeds that of the primary support
• Supports a total of 30' of vent pipe with up to 20' below the support
• Does not act as a firestop
