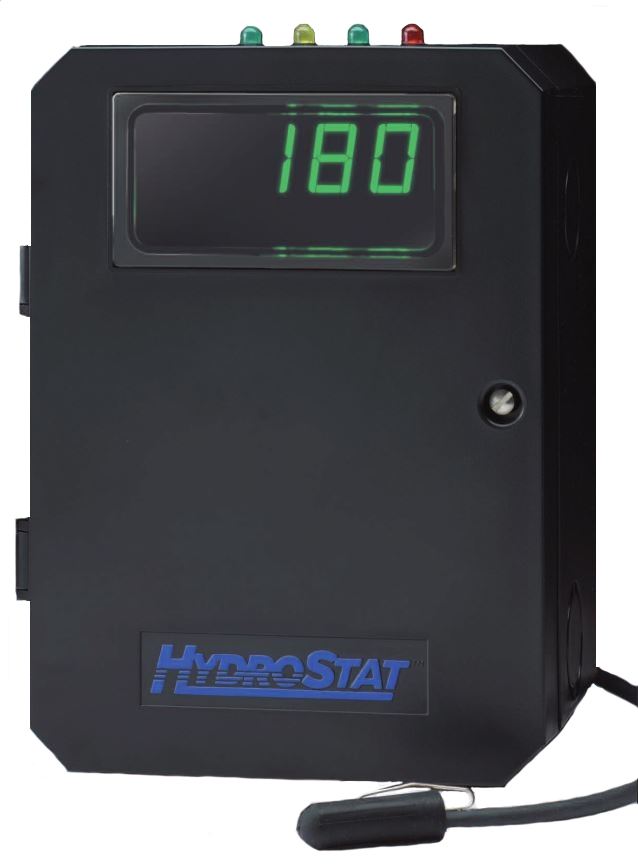

Hydrolevel 3150 HydroStat
Item SKU - 48-3150 by Hydrolevel
EDP - 867440
Product Description
Overview
HydroStat(R) can be used in two ways. By installing the control on an exsisting immersion well, HydroStat(R) can be used as a universal replacement for common Aquastat(R) models. Whether it's a cold start or a tankless coil boiler, HydroStat(R) will provide all the temperature functions of the control being replaced.
Or, install HydroStat(R) on a Hydrolevel Electro-Well(TM) (sold separately) to automatically activate the low water cut-off function. With HydroStat(R) you can add low water cut-off protection to new or existing installations without the added time and cost to install a separate control.
Features
- Dial-Type Settings
- Allows for quick and easy limit and differential settings.
- Dynamic Temperature Display
- This 3-digit LED display continually indicates boiler temperature. Whenever the high limit, low limit, or differential temperature dials are turned, the LED instally changes to display the setting temperature. For a quick reference, the LED will scroll through the current temperature and differential setting each time the HydroStat(R) control is powered up.
- Easy to Wire
- HydroStat(R) uses the same terminal designations as common Aquastat(R) models. This makes field replacement fast and easy.
- Four On-Board Diagnostic Indicating Lights
-
- Green TEMP ACTIVE - Indicates HydroStat(R) is powered and the temperature function is active
- Yellow TEMP HIGH TEMP - Illuminates any time the boiler is off on high temperature limit
- Green LWCO ACTIVE - Only illuminates when the HydroStat(R) is providing Low Water Cut-Off functionality. This function is activated by installing the control on a Hydrolevel Electro-Well(TM). This LED will not illuminate when installed on a standard immersion well
- Red LWCO LOW WATER - Indicates a low water condition in the boiler
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Style
Function
Switching Action
Reset Style
Adjustable Differential
Voltage
High Limit Low
High Limit High
Low Limit Low
Low Limit High
High Limit Temperature Differential
Low Limit Temperature Differential
