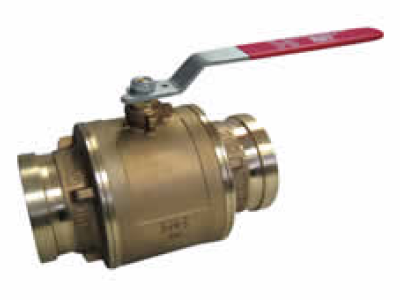

Red and White 5020ABX-2-1/2 EzPress Lead Free Brass XLC 2-1/2 inch Press x 2-1/2 inch Press Full Port Ball Valve
Item SKU - 5020ABX 2-1/2 by Red and White
EDP - 941714
Please Login for Pricing
Product Description
Features
- 200# WOG
- Low Lead Brass Body
- Dual Female Pres Ends
- Chrome Plated Ball
- PFTE Seats
- Blow-Out Proof Stem
- Adjustable Packing
- MSS-SP-110 Base Design
- Body Conforms to XLC Design
- AB1953 & NSF-372 Certified
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Material
DZR Brass
Lead Free
Yes
P1 Size
2-1/2
P1 Connection
Press
P2 Size
2-1/2
P2 Connection
Press
WOG Pressure rating
200 PSIG
Max Temperature (Fahrenheit)
250
Body Style
2 piece
Bore
Full Port
Approval
NSF
ANSI
Purge
No
Cap
No
Approximate Weight (pounds)
11.13
