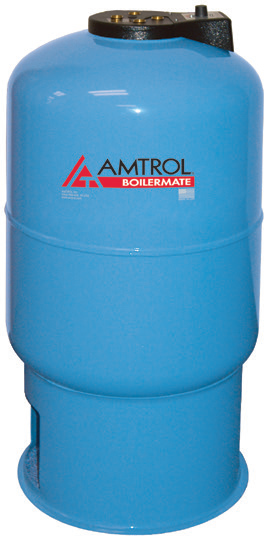

Amtrol CH-41Z BoilerMate Indirect-Fired Water Heater - Blue

Item SKU - 399087 by Amtrol
EDP - 985730


Please Login for Pricing

Product Description

Overview

Amtrol invented the first indirect-fired water heater, using the existing energy in a boiler system to minimize fuel use and maximize hot water output. More efficient than conventional gas or electric water heaters, BoilerMate indirects provide more hot water, use less energy and require no venting or additional utility connections. Compared to tankless water heaters, BoilerMate operates efficiently while adding a storage buffer for whole-family hot water needs. BoilerMate heaters feature top connections for a compact footprint, installation flexibility and easy maintenance.

Features

  • Corrosion-Proof Material Resists Chlorides, Scale and Aggressive Water; No Anode Rod Required.
  • Provides Clean, Fresh Water.
  • Advanced, High-Temp Polymer Rated to 180º F.
  • Unique, Molded Insulation Eliminates Gaps to Minimize Heat Loss.
  • Form Fitted to Bottle and Outer Shell for Enhanced Efficiency.
  • Twice the Strength of Traditional Construction.
  • Precision Welded with Rugged Steel Base.
  • High Gloss Finish; Available in Blue, Red or Gray.
  • Finned Design for Effective Heat Transfer.
  • Removable for Cleaning and Service.
  • Affordable Double Wall Option for Regional Code Compliance.
  • Mechanical Aquastat is Fast Acting.
  • 6-Year Limited Warranty.
  • Limited Lifetime Warranty Upgrade Option Available.

Documentation

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Tank Size (Gallons)
41
Tank Material
Stainless Steel
Heat Exchanger Style
Coil
Number of Heat Exchangers
1
Height (inches)
48
Diameter/Width (inches)
22
Boiler Water Connection
3/4 Female
Water Inlet Size
3/4 Female
Hot Water Outlet Size
3/4 Female
Boiler Connection Location
Top
Input Water Temperature
180 degrees
Domestic Water Temperature
115 degrees
First Hour Rating (GPH)
89
Continuous Flow (GPH)
69
Relief Valve
Yes
Boiler Output Required (BTU)
40000
