Overview

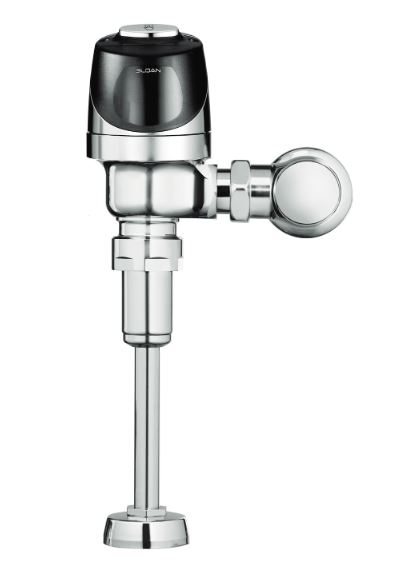

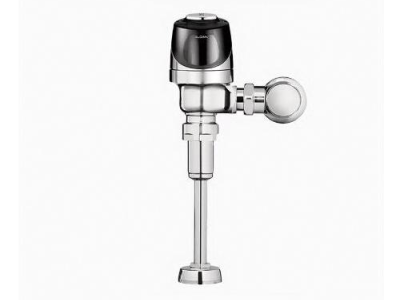

G2 Optima Plus(R) exposed sensor-activated urinal flushometers are the "perfect match" for today's urinals that require battery-power, including Sloan's new fixture line, and are part of the Sloan family of flushometers.

Features

• PERMEX(R) Synthetic rubber diaphragm with dual filtered fixed bypass
• Flex tube diaphragm designed for improved life and reduced maintenance
• ADA Compliant OPTIMA Plus(R) battery powered infrared sensor for automatic "No Hands" operation
• Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Latching solenoid operator
• Engineered metal cover with replaceable lens window
• Courtesy Flush(R) override button
• Four (4) size AA alkaline batteries included: Duracell(R) with DURALOCK Power Preserve Technology(TM) - guaranteed for up to 10 years in storage
• "Low Battery" flashing LED
• Infrared sensor range adjustment screw
• Initial set-up range indicator light (first 10 minutes)
• 3/4" I.P.S. Screwdriver Bak-Chek(R) angle stop
• Free spinning, vandal resistant stop cap
• Adjustable tailpiece
• High back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut
• Spud coupling and flange for 3/4" top spud
• Sweat solder adapter with cover tube and cast set screw wall flange
• High copper, low zinc brass casting for dezincification resistance
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Flush accuracy controlled by CID technology
• Diaphragm, stop seat, and vacuum breaker to be molded from PERMEX(R) rubber compound for chloramine resistance
• 100% of the energy used in manufacturing is offset with renewable energy sources - Wind Energy
