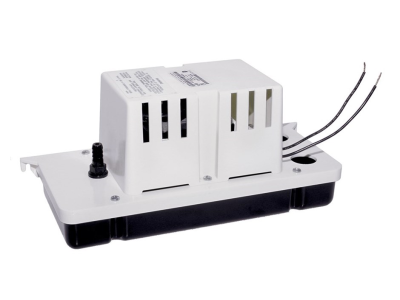

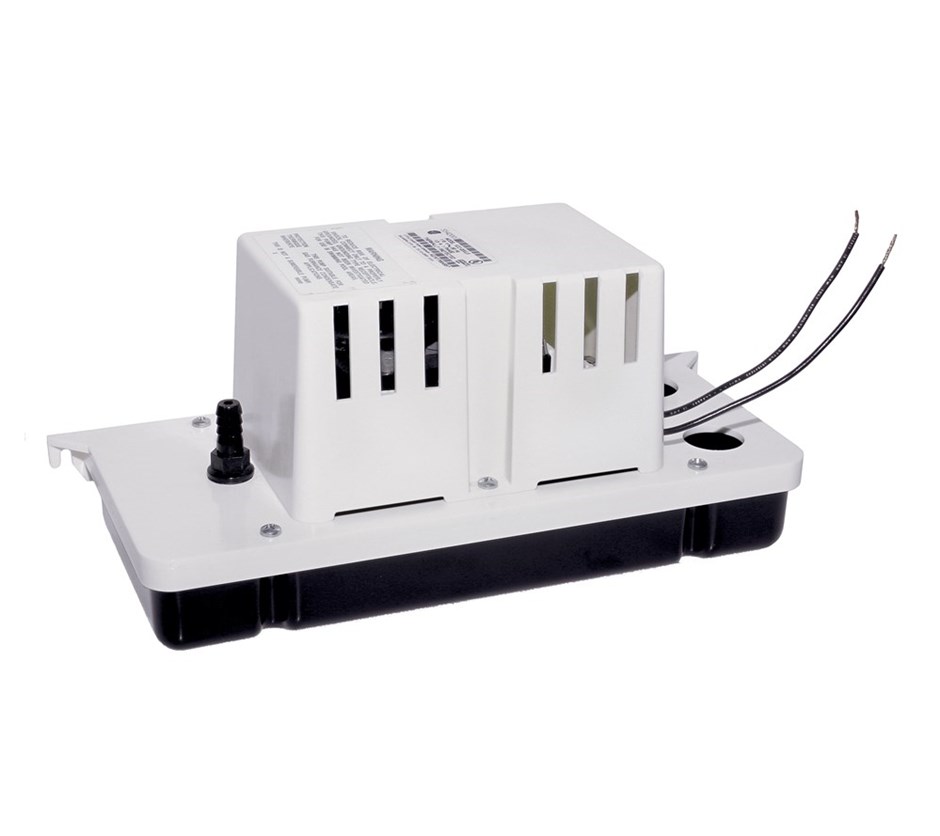

Little Giant VCC-20ULS Low Profile Condensate Pump
Item SKU - 554201101 by Little Giant
EDP - 671404
Please Login for Pricing
Product Description
Overview
Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or pratical. also suitable for high efficiency oil -and gas-fired condensing furnace equipment.
Features
- Low profile for limited spaces
- Vertical centrifugal pump design
- Automatic start, stop and high level water detection (safety overflow switch)
- 3/8" O.D. barbed discharge adapter with built-in check valve (installed on the pump)
- 1/4" O.D. barbed discharge adapter (included in the box)
- Two inlet openings (one 1.0" and one 1-1/8" diameter)
- Safety overflow float activated switch
- Two 5" safety overflow switch lead wires
- Thermally protected, fan cooled motor
- Built-in wall mount tabs
- Intermittent liquid temperature up to 120 degrees F
- 20' shut-off head
- 6 ft, 3-conductor cable with grounded 3-prong plug (115V and 230V models)
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Voltage
Head (feet)
Safety Switch
Stance
Max Temperature
Tubing
Approximate Weight (pounds)
Warranty
