Atco #31 7 inch x 25 foot R-8.0 Fiberglass Air Duct with Silver Polyester Vapor Barrier and Black Polyester Core
Item SKU - 13102507 by Atco
EDP - 745825
Product Description
Overview

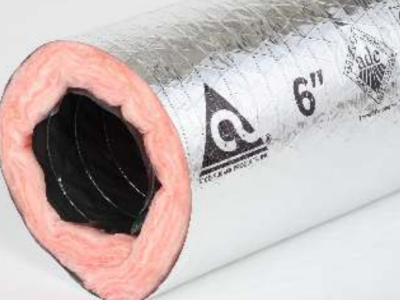

ATCO's UPC #031 is a UL 181, Class 1 Air Duct and is manufactured with a tri directional fiberglass scrim reinforced, metallized polyester outer jacket. The inner core is air tight and designed for low to medium operating pressures in HV/AC systems.
Features
- A double lamination of tough polyester which encapsulates a steel wire helix forms the air-tight inner core of the ATCO #031
- The double-layer core of each product is wrapped in multiple thicknesses of fiberglass insulation
- The Atco #31 is sheathed in a rugged and durable tri directionally reinforced, metallized polyester jacket
- Air tight Inner Core is Energy efficient - No fiberglass erosion into air stream
- Encapsulated Wire Helix - No unraveling when cut to length - Quick installation
- Smooth Inner Core with Low friction loss - Low operating cost
- Thick Blanket of Fiberglass Insulation for Energy efficiency - Excellent thermal characteristics
- Tough Reinforced Metallized Polyester Jacket that is tear and puncture resistant - Low maintenance
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Type
Material
R-Value
Diameter (inches)
Length (feet)
Atco #31 7 inch x 25 foot R-8.0 Fiberglass Air Duct with Silver Polyester Vapor Barrier and Black Polyester Core
Item SKU - 13102507 by Atco (EDP 745825)
Product Description
Overview
ATCO's UPC #031 is a UL 181, Class 1 Air Duct and is manufactured with a tri directional fiberglass scrim reinforced, metallized polyester outer jacket. The inner core is air tight and designed for low to medium operating pressures in HV/AC systems.
Features
- A double lamination of tough polyester which encapsulates a steel wire helix forms the air-tight inner core of the ATCO #031
- The double-layer core of each product is wrapped in multiple thicknesses of fiberglass insulation
- The Atco #31 is sheathed in a rugged and durable tri directionally reinforced, metallized polyester jacket
- Air tight Inner Core is Energy efficient - No fiberglass erosion into air stream
- Encapsulated Wire Helix - No unraveling when cut to length - Quick installation
- Smooth Inner Core with Low friction loss - Low operating cost
- Thick Blanket of Fiberglass Insulation for Energy efficiency - Excellent thermal characteristics
- Tough Reinforced Metallized Polyester Jacket that is tear and puncture resistant - Low maintenance
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Type |
|
|
Material |
|
|
R-Value |
|
|
Diameter (inches) |
|
|
Length (feet) |
|
