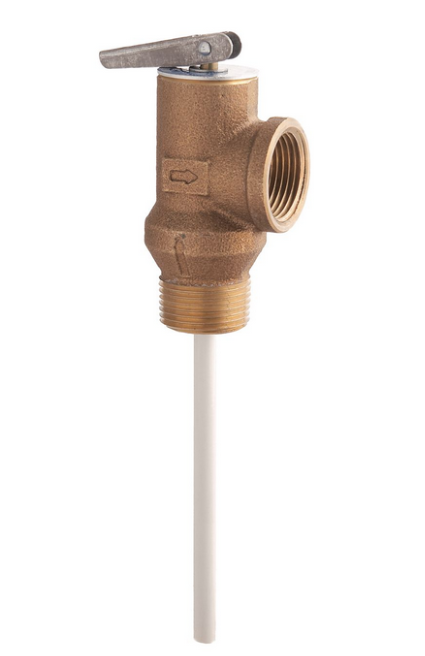

Watts LF100XL-8 0556001 3/4 inch Male Inlet x 3/4 inch Female Outlet 150 PSI Lead Free Copper Alloy Body Temperature and Pressure Relief Valve

Item SKU - 0556001 by Watts
EDP - 1026072


Please Login for Pricing

Product Description

This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating with 8 inch extension, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi. ASME rated and CSA listed

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Application
Domestic Hot Water Tank
Max PSI
150
Temperature Probe Length
8
No Lead
Yes
Approximate Weight (pounds)
.80
