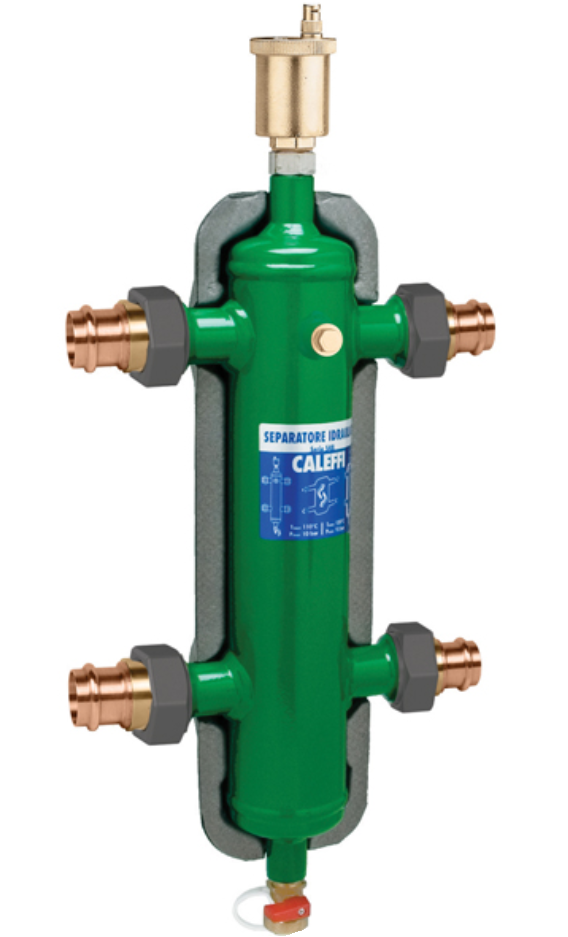

Caleffi 548009A Hydro Separator 2 inch Female Union Steel Hydraulic Separator with Insulation

Item SKU - 548009A by Caleffi
EDP - 863984


Please Login for Pricing

Product Description

Epoxy resin painted steel body - Brass automatic air vent - Brass shut off valve - Brass hose thread drain valve on bottom - Type 300 stainless steel internal baffle - 150 PSI maximum working pressure - 32 degrees to 210 degrees maximum working temperature range with insulation - 32 degrees to 250 degrees maximum working temperature range without insulation - For use with water and up to 50 percent maximum glycol antifreeze

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Approximate Height (inches)
30.625
Approximate Weight (pounds)
27
Approximate Width (inches)
11.50
Connection
Female IPS Union
Material
Steel
Size
2
