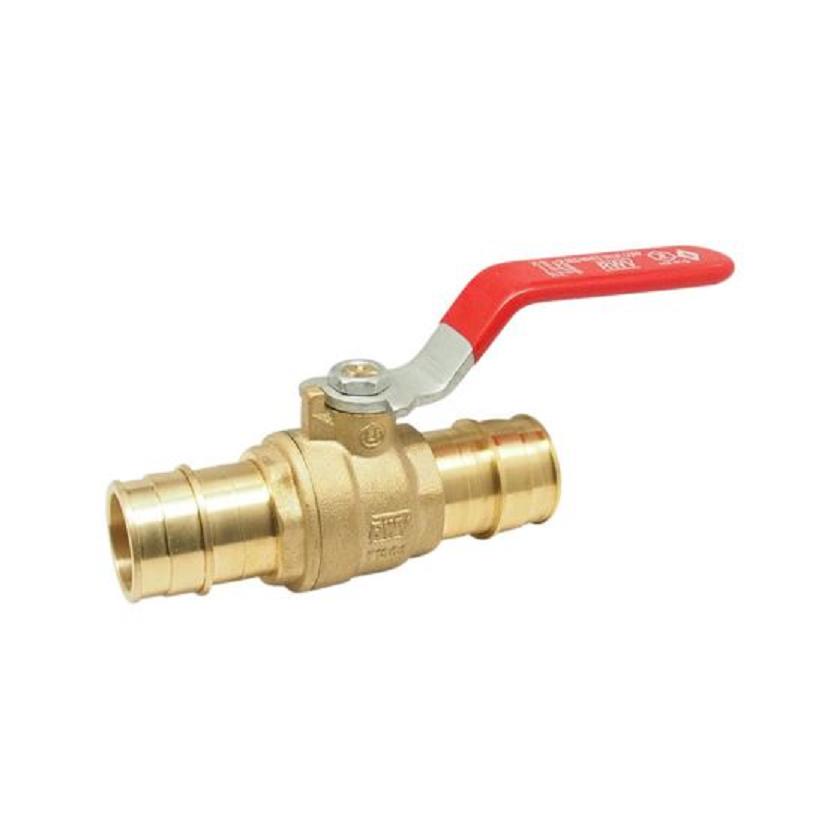

Red and White 5015AB-1/2 Lead Free Brass 1/2 inch PEX x 1/2 inch PEX Full Port Ball Valve
Item SKU - 5015AB 1/2 by Red and White
EDP - 1055736
Please Login for Pricing
Product Description
Red handle - For Uponor/Wirsbo F1960 PEX - Two piece body - Blow out proof stem - Double NBR "O" ring packing - Virgin PTFE seats - Chrome plated ball
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Material
Lead Free Brass
Lead Free
Yes
P1 Size
1/2
P1 Connection
Wirsbo Pex
P2 Size
1/2
P2 Connection
Wirsbo Pex
WOG Pressure rating
400 PSIG
Body Style
2 piece
Bore
Full Port
Approval
CSA
NSF
ANSI
Approximate Height
1.98
Approximate Length
.85
Approximate Weight
.28
Approximate Width
2.48
