Overview

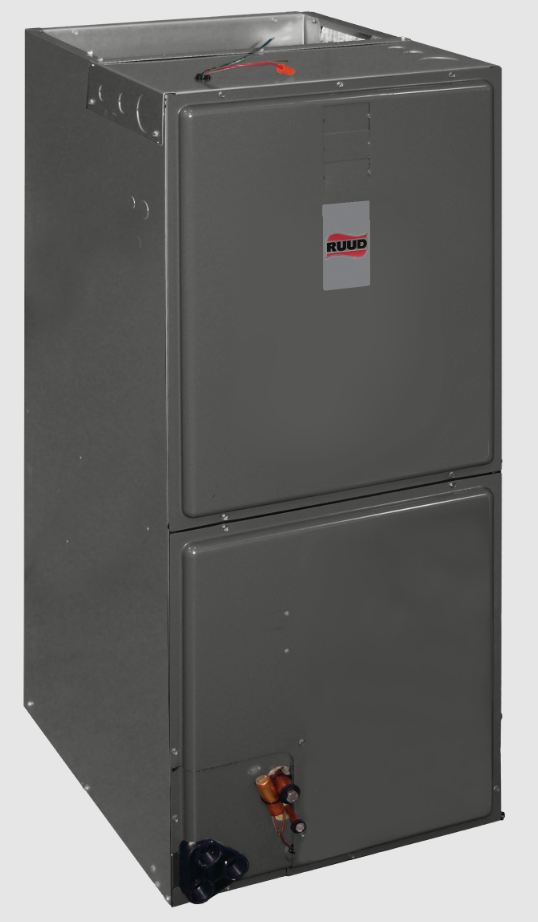

Ruud High Achiever Series premium efficiency air handlers featuring industry standard R-410A refrigerant now also come with GE's new X-13 motor, which provides enhanced SEER performance with most Ruud outdoor units.

Features

• This is a multiposition air handler: Upflow, downflow, horizontal right or horizontal left - Vertical upflow / horizontal left is the factory configuration
• Supply dimensions: 10-5/16 inches front to back - 23 inches side to side - Supply duct flanges are standard
• Return dimensions: 19-3/4 inches front to back - 22-7/8 inches side to side
• Can be used with air conditioners or heat pumps
• The most compact unit design available
• Attractive, rugged steel wall cabinet with pre-painted exterior
• 1 inch of foil faced insulation mechanically retained in blower compartment for excellent thermal and sound performance
• Four leg blower motor mount

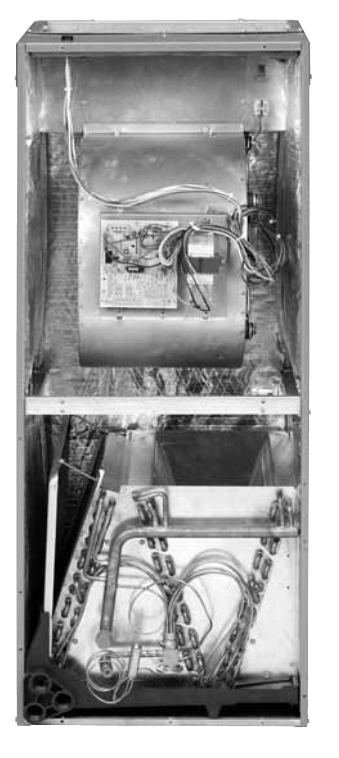

• Slide out blower housing with motor, blower and controls for service and maintenance convenience
• Expansion valve on indoor coil allows operation with air conditioning or heat pump using the same coil
• Coils are constructed of aluminum fins bonded to internally grooved copper tubing
• Molded polymer corrosion resistant condensate drain pan
• Provisions for field electrical connections are on both sides or the top of the cabinet
• High voltage wiring connection is inside the cabinet - Low voltage connection is on the outside of the cabinet
• Front refrigerant and drain connections
