Overview

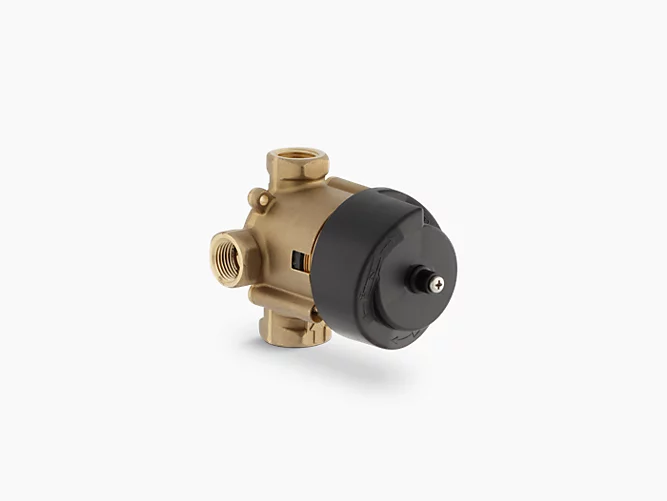

The MasterShower diverter valve brings a new level of innovation and flexibility as a custom shower solution. When paired with compatible trim, its three-way design allows control of up to three separate components, and can also easily be configured as a two-way diverter valve.

Features

• Diverts water flow to up to three separate components/outlets.
• Components/outlets can only be operated individually.
• Supplied as a three-way diverter valve (360 degree handle rotation) but can be configured onsite for two-way operation (120 degree handle rotation).
• Single handle operation.
• Using 1 outlet: 18 gpm flow rate at 45 psi; using 2 outlets: 20.8 gpm at 45 psi.
• One 3/4" female NPT inlet connection.
• Three 1/2" female NPT outlet connections.
• Requires additional valve/s to control On/Off operation and temperature (sold separately).
• Requires transfer/diverter valve trim (sold separately).

Material

• Forged de-zincification-resistant brass body provides long term reliability and resistance to aggressive water conditions.
