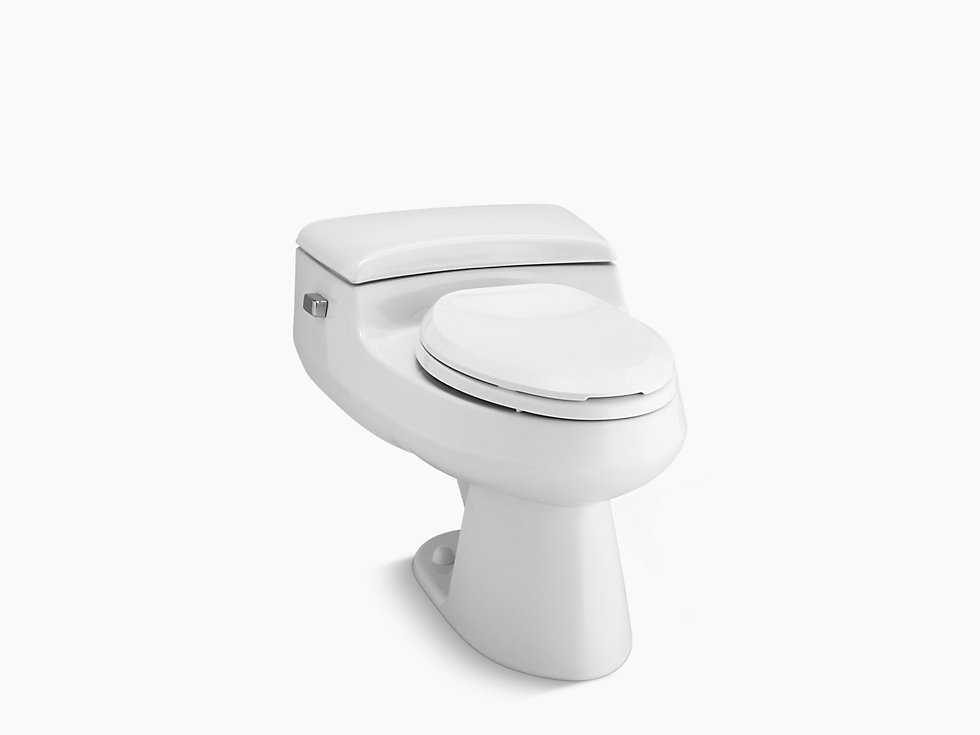

Kohler K-3597-0 San Raphael Comfort Elongated Toilet with Pressure Lite - White

Item SKU - 3597-0 by Kohler
EDP - 860047


Please Login for Pricing

Product Description

Overview

This San Raphael toilet brings the elegant contemporary style of a low-profile, one-piece toilet to your bathroom or powder room. Designed with pressure vessel technology, this toilet delivers commercial-grade flushing. Its 1.0-gallon flush setting reduces your water use by more than 30 percent over 1.6-gallon toilets, adding up to water savings of more than 5,000 gallons per toilet, per year. Its sitting height and ergonomic, elongated bowl ensure extra comfort.

Features

  • One-piece toilets integrate the tank and bowl into a seamless, easy-to-clean design.
  • Elongated bowl offers added room and comfort.
  • Comfort Height(R) feature offers chair-height seating that makes sitting down and standing up easier for most adults.
  • 1.0 gallon per flush (gpf).
  • Equipped with Sloan Flushmate(R) Pressure Vessel.
  • Seat and lid included.

Technology

  • Pressure Lite(R) flushing technology provides commercial-grade flushing power while reducing water use.

Installation

  • Standard 12-inch rough-in.
  • Supply line not included.

Water Conservation & Rebates

  • WaterSense(R) toilets meet strict EPA flushing guidelines, including using at least 20 percent less water than 1.6-gallon toilets.
  • Eligible for consumer rebates in some municipalities.
  • This product can help a building earn Water Efficiency points in the LEED(R) Green Building Rating System.
  • This product meets water savings requirements for California Energy Commission (CEC), CALGreen, and Colorado SB 14-103.

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

GPF
1.0
Tank Color
White
Flush Technology
Pressure Lite
Wall Mount
No
WaterSense
Yes
Tank Height (inches)
21.5
Tank Width (inches)
19.5
Tank Length (inches)
30
Includes Tank Lever/Flush Actuator
No
Insulated
No
Tank Cover Locks
No
Tank Lever Location
Left
Number of Pieces
1
Overall Height (inches)
21.5
Overall Width (inches)
19.5
Overall Length (inches)
30
Rough In
12
Shape
Elongated
Bowl Color
White
Nominal Height
Comfort Height
Includes Seat
No
Mount
Floor
Bowl Height (inches)
16.5
Bowl Width (inches)
19.5
Bowl Length (inches)
30
Material
Vitreous China
Requires Electrical
No
Water Line Rough Height above Ground (inches)
2.625
Water Line Rough Distance Off Center(inches)
6.5
Concealed Trapway
No
Skirted Trapway
No
Antimicrobial Microglaze Finish
No
ADA
Yes
Outlet Location
Floor
Water Spot/Surface (inches)
9" x 7"
Trapway Size (inches)
2.125
Collection
San Raphael
Warranty
Limited 1-Year
